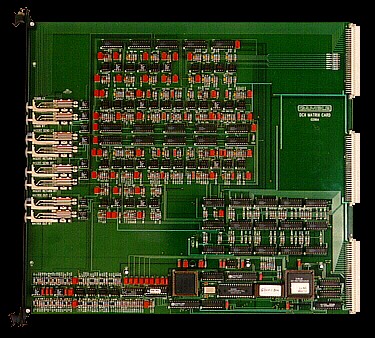

32x2 Stereo Matrix as follows:
8 Stereo Subgroups (Post Subgroup Master Faders)
with Discreet Left and Right Levels with Stereo Linking and Panning.
16 Stereo Aux Sends (Post Aux Odd and Post Aux Even Master Faders) with Discreet Left and Right Levels with Stereo Linking and Panning.
Stereo Master (with both Pre Master Fader and Post Master Faders) with Discreet Left and Right Levels with Stereo Linking and Panning.
Mono (Post Mono Master Fader).
Center (Post Center Master Fader).
Stereo Matrix Sum In with Ultra Faders.
Matrix Mono (Pre Matrix Insert).
Stereo Matrix Inserts (Pre EQ).
Stereo Four Band Super Parametric EQ 1/10th to 2 octave bandwidth.
High Freq.(Peak/Shelf) 1kHz to 16kHz, +/-15dB boost-cut.
High-Mid (Peak/Notch) 650Hz to 12kHz, +15dB boost / -40dB cut.
Low-Mid (Peak/Notch) 100Hz to 1.6kHz, +15dB boost / -40dB cut.
Low Freq.(Peak/Shelf) 30Hz to 500Hz, +/-15dB boost-cut.
Stereo Matrix Master with Ultra Faders.
2 Independent Stereo Matrix Cue System (A and B) Pre and Post Fader.
VU Meters (with simultaneous Peak and Average reading) Post Matrix Master Faders Left and Right.
Peak-Clip Indicators for Pre and Post Matrix Faders (Left and Right).
DCX VU METER SPECIFICATIONS (Applies to all VU Meters in the system)
-40dB to -15dB in 1dB increments and -15dB to +15dB in .5dB increments,
a total VU Meter range of 55dB, in 86 steps, updated at 20 times a second.
